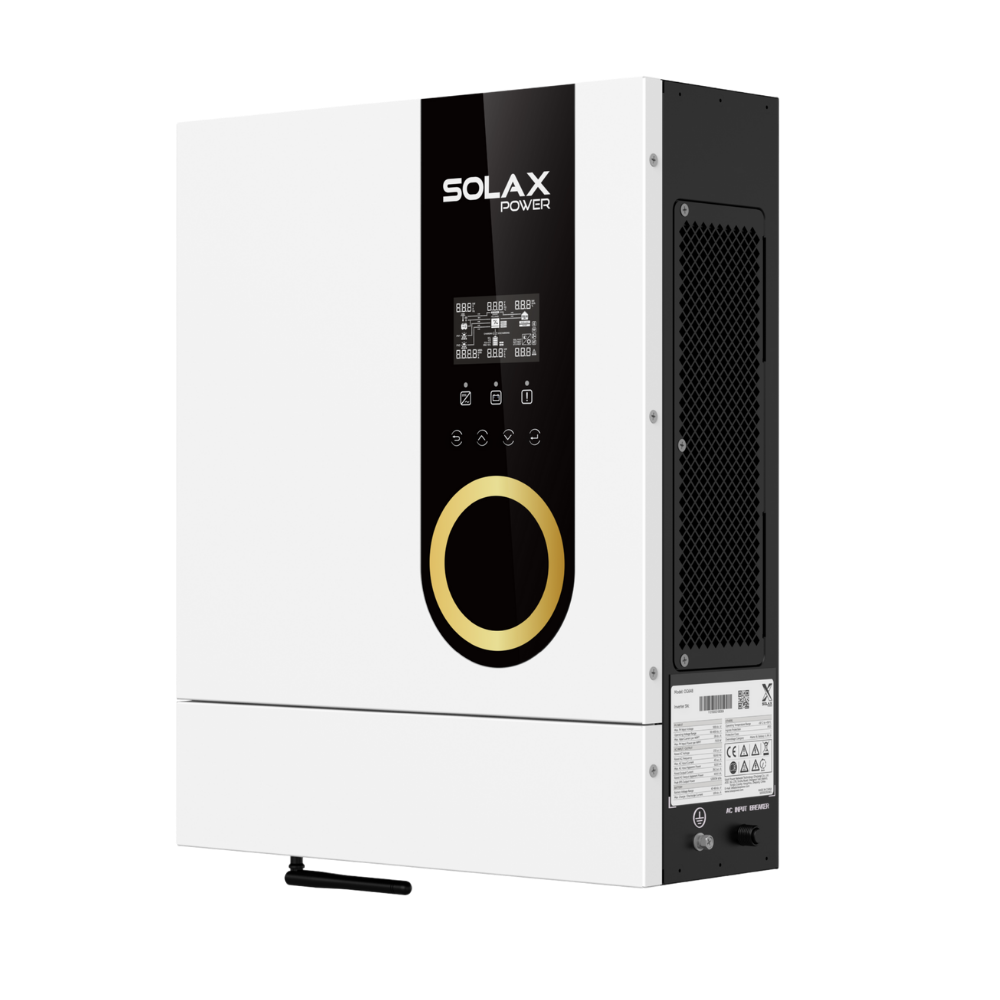

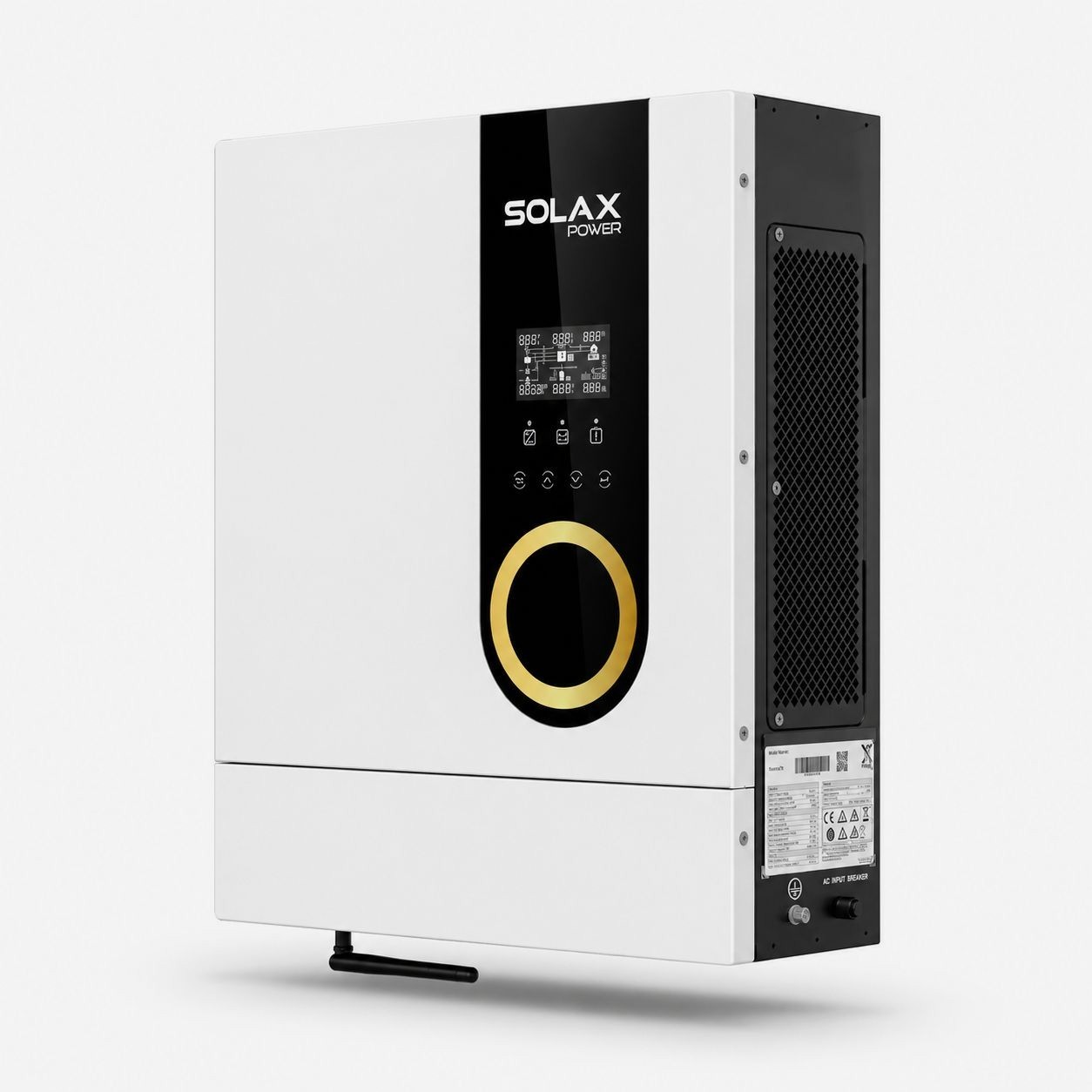

OG SERIES 5kW / 6kW (Off-Grid Inverter)

OG SERIES 5kW / 6kW (Off-Grid Inverter)

Features a maximum PV input current of 28A for easy compatibility with high-power modules. It delivers a maximum charge current of 120A and discharge current of 140A, exceeding the industry average by 20%. The inverter also supports up to 200% AC output overloading for 5 seconds. With seamless switching under 4 ms, it ensures uninterrupted power supply. The system allows parallel operation of up to 3 units and includes a smart load management generator port. It is compatible with multiple battery types and designed for reliable off-grid performance without a battery when needed.

Category
Datasheet

Description

The OG Series single-phase off-grid inverter delivers reliable power with under 4ms seamless switching and battery-free backup. It supports high-power PV input (28A), offers 20% higher charge/discharge currents than average, and handles 200% AC overload. Features include built-in WiFi for remote monitoring, smart load management via generator port, parallel operation for up to 3 units, and multi-battery compatibility.

PV INPUT

Max. recommended PV array power6 kWp
Operating voltage range90 – 450 d.c. V
No. of MPP trackers / strings per MPP tracker1 / 1
Max. input current per MPPT20 d.c. A
